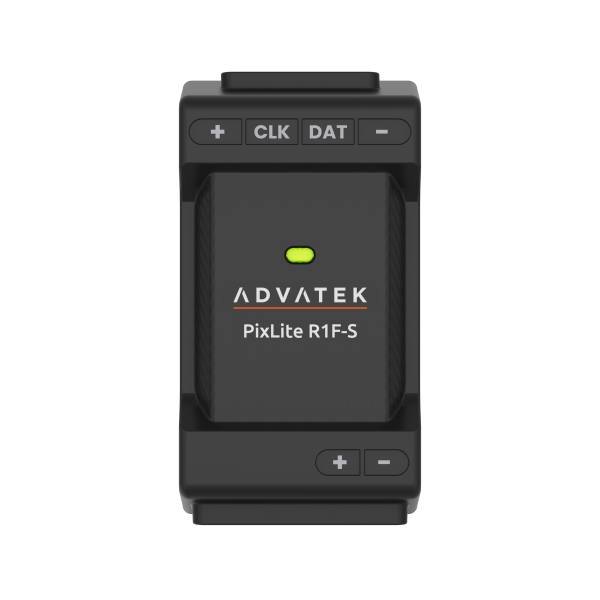

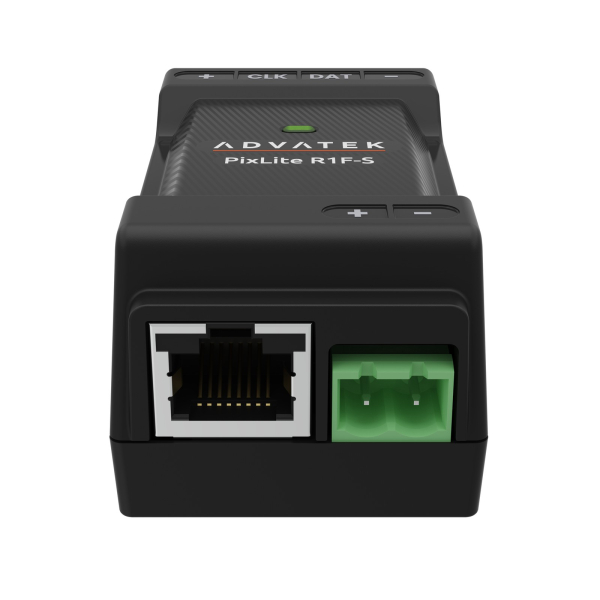

Advatek PixLite® R1F-S – Long-Range Pixel Receiver
The PixLite® R1F-S is Advatek’s newest long-range pixel receiver, engineered for maximum flexibility and cost optimization. It accepts 5–48 V input, delivers up to 10 A throughput current, and features a slimline enclosure perfect for tight spaces.

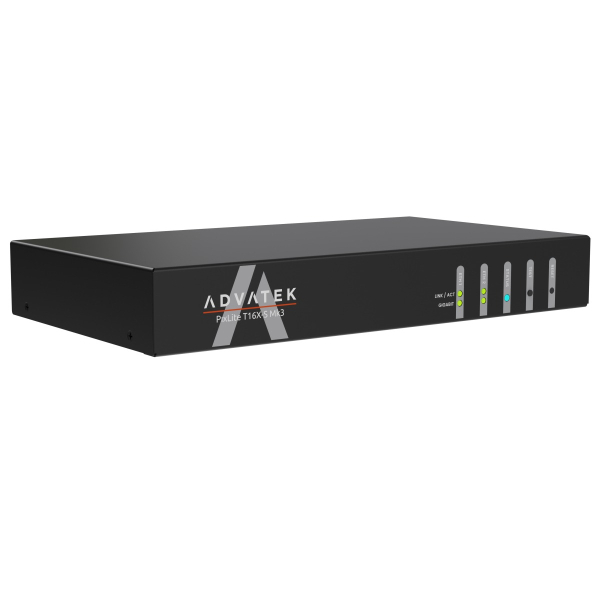

Paired with the PixLite® T16X-S Mk3, this system can reduce control costs by up to 40 % in highly dispersed pixel installations – ideal for large-scale architectural and event projects. All units are designed and manufactured in Australia and backed by a five-year warranty for ultimate peace of mind.
Key Features
- Single pixel output
- Slimline form factor
- Receiver and pixels can be driven at 5–48 V
- 10 A throughput current
- Multiple receivers cover a 300 m radius
- Ideal for sleek, low-profile installations
- DIN rail mount
- Flat surface mount
Technical Specifications
| Parameter |
Value |
| Pixel Outputs |
1 |
| Data Inputs (from Transmitter) |
1 |
| Dimensions (W×H×D) |
72 × 39 × 31 mm |
| Weight |
0.054 kg |
| Enclosure Material |
Black polycarbonate |
| Mounting Options |
Flat/Tubular surface & DIN rail |
| Input Power |
5–48 V DC |
| Per Output Current Limit |
10 A |
| Ambient Operating Temp. |
−20 °C to +55 °C |
