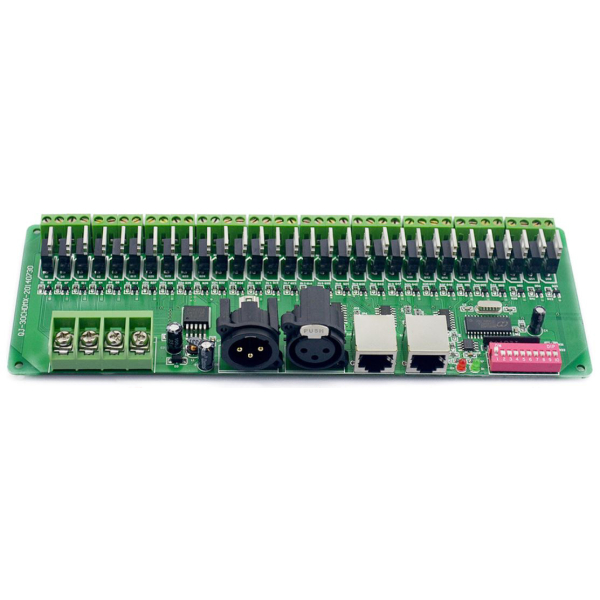

30 channel DMX 512 Controller (circuit board)

Item number: LCO-1054-01

EAN: 4260587330259

Category: DMX

30-channel DMX decoder for controlling our RGB-LEDs, RGB LED strips or modules via DMX-512. The decoder can process the standardized DMX-512 protocol.

Show description
Differential price
From 10 piece » 48,73 €
58,48 €

including 16% VAT., plus shipping (Standard)

piece

Available (1 - 4 workdays)
Description

Three channels (red, green, blue). The power supply and the RGB LEDs are connected via screw terminals. The DMX control cables can be connected via the XLR-3 or RJ45 socket.

The DMX-512 controller has internal test programs that are selected as well as the DMX address via DIP switches.

The DMX signal can be looped through to other devices via the DMX Out.

application areas:

  •   Advertising displays
  •   DMX control of RGB LEDs, RGB LED strips or modules
  •   Control of Christmas lights
  •   AmbiLight
  •   Club lights
  •   Stage light
Characteristics
WEEE-Reg.-Nr. :
current voltage:
Product weight:
0,15 Kg
Technical specifications
Voltage: 9-24V DC
Output current: max. 2A per channel
Length: 225.00mm
Width: 80.00mm
Height: 32.00mm
Working temperature: -20 bis + 60 °C
Case For installation in a housing (not to be used without a housing)
Input signal: DMX512
Channels: R/G/B/COM+
Brightness levels: 256 levels
DMX512 connection: DMX512 input and output for DMX signals
Delivery included: 1 Controller l
