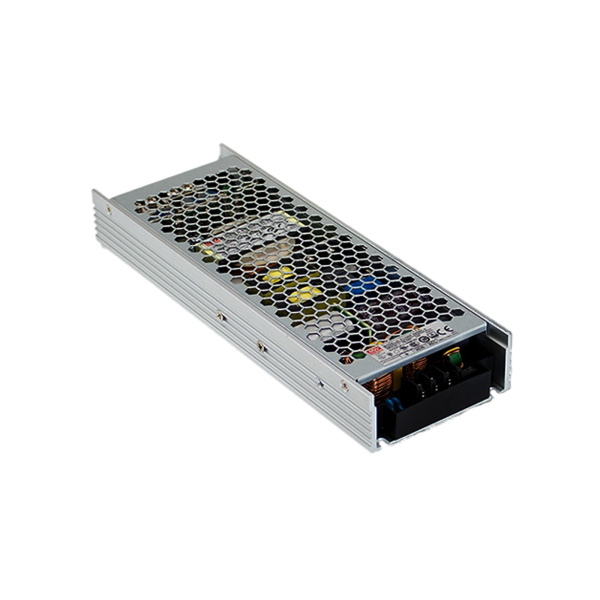

5 Volt LED Schaltnetzteil 80A 400Watt (UHP-500-5)

SKU 10051 GTIN 9900002560841 HAN UHP-500-5

MeanWell (HRP-300-5) electronic closed-circuit 5V transformer in metal housing with screw terminals to power our RGB-Pixel/5 Volt Pixel Strips.

86,99 €
86,99 € per 1 m
incl. 19% VAT, plus shipping costs

Business customer? Net prices & quotes in your B2B account →

  • Available immediately
  • Delivery time: 2 - 6 Workdays  (DE - int. shipments may differ)
pcs
or pay directly
  • Available immediately
  • Delivery time: 2 - 6 Workdays  (DE - int. shipments may differ)
  • Ships from Germany

Description

The switching power supply is suitable due to its flat design (41mm) especially for projects with little space for the installation of a switching power supply. The active cooling takes place via a fan. Further features include a sensor connection for correct voltage at the load, a DC-OK signal, an active PFC filter as well as short circuit and overvoltage protection.

application areas:

  •   Advertising displays
  •   Control of Christmas lights
  •   AmbiLight
  •   Club lights
  •   Stage light

Technical data

Item information Value
Shipping weight: 0,97 kg
Content: 1,00 m
Product safety information
Manufacturer information:
MEAN WELL EUROPE N.V.
Langs de Werf 8
NL-1185 XT Amstelveen
Niederlande
https://www.meanwell.eu

Technical specifications

Input voltage: 120/370 Volt
output voltage: 5V (+/- 5%)
Output current: 60A
Output Power: 300W
Length: 199.00mm
Width: 105.00mm
Height: 41.00mm
Working temperature: -40 bis + 70 °C
Case Metal
Delivery included: 1 power supply



user manual

  SPEC
