Description
Identical to the standard E16-S — with conformal coating for mounting inside a weatherproof enclosure

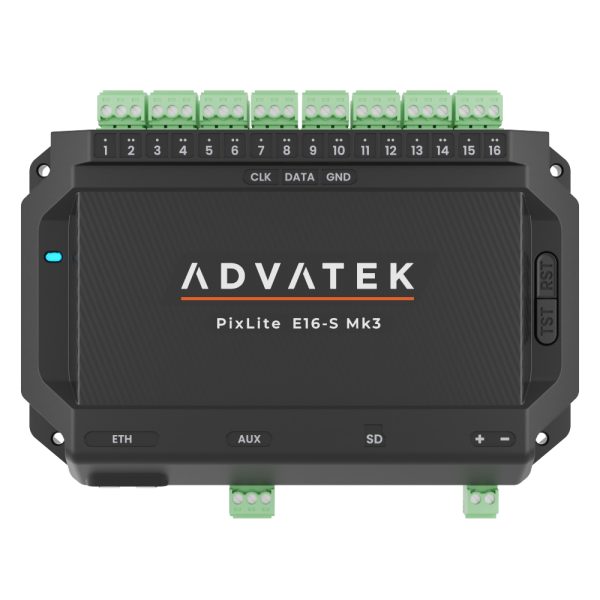

The PixLite® E16-S Mk3 with conformal coating is electronically identical to the standard E16-S Mk3: same Mk3 processor, the same sixteen data outputs for up to 16,320 pixels, the same connections. The only difference is the conformal coating on the circuit board. According to Advatek, it allows outdoor installation — but only when the controller is additionally mounted inside a weatherproof enclosure. This variant is not designed for open outdoor use without an enclosure either.
What is different from the standard model?
Only on this variant
- Conformal coating on the circuit board
- Can also be mounted outdoors — additionally inside a weatherproof enclosure
Identical to the standard E16-S
- 16 data outputs for up to 16,320 RGB pixels, 96 universes sACN/Art-Net, DMX512 on the AUX port (1 universe)
- Dimensions, weight, connections, compatibility and configuration — details on the standard E16-S Mk3
What's in the box
PixLite® E16-S Mk3 controller with conformal coating and pluggable terminal blocks. Power supply, pixels, microSD card, DIN rail kit and the weatherproof enclosure for outdoor mounting are not included.
Technical data
| Item information | Value |
|---|---|
| Control protocol: | Art-Net / sACN (E1.31) / DMX512 |
| Ambient operating temperature: | -20 °C to +70 °C |
| Enclosure: | ABS with conformal coating |
| Input voltage: | 5–24 V DC (controller only) |
| Pixel outputs: | 16 |
| Ethernet ports: | 1 × 10/100 Mbit/s |
| Auxiliary port: | RS485 (DMX in/out) |
| Card slot: | microSD (card not included) |
| Mounting: | Flat surface or DIN rail (kit sold separately) |
| Pixels per output: | up to 1,020 RGB / 768 RGBW |
| Universes: | 96 |
| Dimensions: | 114.5 × 149.5 × 35.5 mm |
| Show storage: | microSD, SHOWTime™ up to 25 triggers |
| Image processing: | Gamma correction and dithering |
| Power consumption: | max. 3.5 W |
| Weight: | 0.2 kg |
| : | Indoors by default; with conformal coating also outdoors when additionally mounted inside a weatherproof enclosure |
| Pixel power supply: | separate power injection |
| WEEE-Reg.-Nr.: | DE 32487762 |
| Shipping weight: | 0,50 kg |
| Content: | 1,00 unit |
