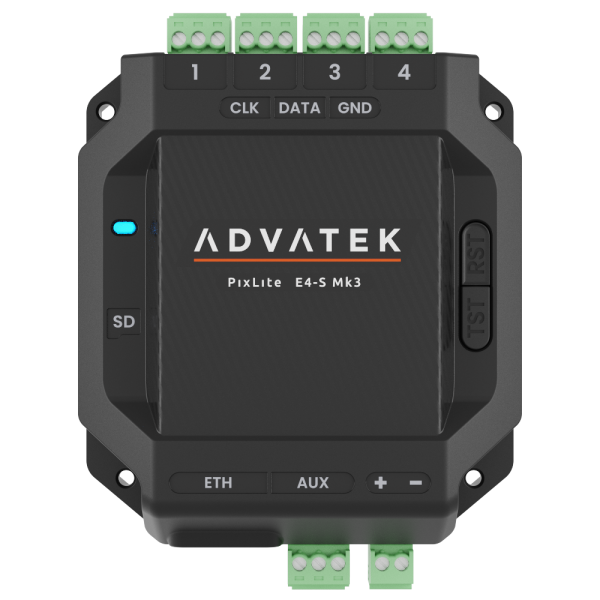

PixLite E4-S Mk3 with conformal coating: four data outputs (1–4) labelled CLK/DATA/GND, SD card slot and status LED

PixLite E4-S Mk3 with conformal coating, connector side: the four output terminals with green plug connectors

PixLite E4-S Mk3 with conformal coating on the DIN rail mounting clip, Ethernet port and power terminal visible from the side

PixLite E4-S Mk3 mit Conformal Coating: Ethernet-Port, Stromklemmen und MAC-Adress-Etikett im Detail

Advatek Lighting

PixLite E4-S Mk3 - Conformal Coating

SKU 10234 GTIN 9360466000435 HAN PIXE4S3-CC

4 data outputs for up to 4,080 RGB pixels, identical hardware to the standard E4-S
Conformal coating for mounting inside a weatherproof enclosure
Configuration in the browser, show from microSD without a computer

539,99 €

incl. 19% VAT, plus

Business customer? Net prices & quotes in your B2B account →

Choose tax zone / country of delivery

This article is located in the inlet
Delivery time: 2 - 3 weeks (DE - int. shipments may differ)

Version Conformal Coating: Standard Standard

Conformal Coating Conformal Coating+ 60,00 €

pcs

or pay directly

This article is located in the inlet
Delivery time: 2 - 3 weeks (DE - int. shipments may differ)

Ships from Germany
RMA service

Description Technical data Documents

Identical to the standard E4-S — with conformal coating for mounting inside a weatherproof enclosure

The PixLite® E4-S Mk3 with conformal coating is electronically identical to the standard E4-S Mk3: same Mk3 processor, the same four data outputs for up to 4,080 pixels, the same connections. The only difference is the conformal coating on the circuit board. According to Advatek, it allows outdoor installation — but only when the controller is additionally mounted inside a weatherproof enclosure. This variant is not designed for open outdoor use without an enclosure either.

What is different from the standard model?

Only on this variant

Conformal coating on the circuit board
Can also be mounted outdoors — additionally inside a weatherproof enclosure

Identical to the standard E4-S

4 data outputs for up to 4,080 RGB pixels, 24 universes sACN/Art-Net, DMX512 on the AUX port
Dimensions, weight, connections, compatibility and configuration — details on the standard E4-S Mk3

What's in the box

PixLite® E4-S Mk3 controller with conformal coating and pluggable terminal blocks. Power supply, pixels, microSD card, DIN rail kit and the weatherproof enclosure for outdoor mounting are not included.

Technical data

Item information	Value
Control protocol:	Art-Net / sACN (E1.31) / DMX512
Ambient operating temperature:	-20 °C to +70 °C
Enclosure:	ABS with conformal coating
Input voltage:	5–24 V DC (controller only)
Pixel outputs:	4 non-powered (expanded mode: up to 8)
Ethernet ports:	1 × 10/100 Mbit/s
Auxiliary port:	RS485 (DMX in/out)
Card slot:	microSD (card not included)
Mounting:	Flat surface or DIN rail (kit sold separately)
Pixels per output:	up to 1,020 RGB / 768 RGBW
Universes:	up to 24 (sACN / Art-Net)
Dimensions:	115 × 86 × 33 mm
Show storage:	microSD, SHOWTime™ up to 25 triggers
Image processing:	Gamma correction and dithering
Power consumption:	max. 2.5 W
Weight:	0.1 kg
:	Indoors by default; with conformal coating also outdoors when additionally mounted inside a weatherproof enclosure
WEEE-Reg.-Nr.:	DE 32487762
Shipping weight:	0,50 kg
Content:	1,00 unit
