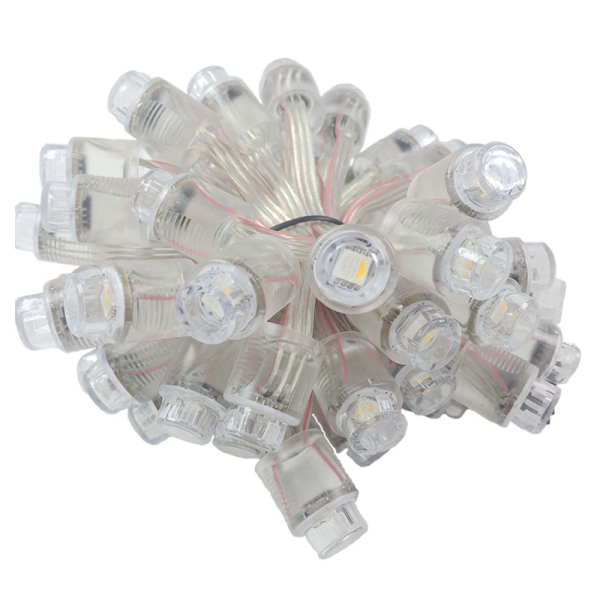

SM16704 RGBW LED 12mm pixel String (5V) 3000K

Item number: PLK-1003-01

EAN: 4260587330020

Category: LED Pixel Modules

Unsere SM16704 LED Pixel Ketten bestehen aus 50 RGBW-LEDs die zu einer Kette verbunden sind.

RGBW Pixel sind nicht nur mit RGB Chips versehen, sondern sind ebenfalls mit einer einfarbigen weißen LED ausgestattet. RGBW Pixel vereinen so die Vorteile einer weißen LED hinsichtlich der Effizienz und der Farbwiedergabe, mit den Vorzügen von RGB Pixel (einstellbare Leuchtfarbe).

Show description
Differential price
From 20 piece » 24,49 € 7,00 € per m
From 50 piece » 23,99 € 6,85 € per m
From 100 piece » 22,99 € 6,57 € per m
From 200 piece » 19,99 € 5,71 € per m
24,99 €
7,14 € per 1 m

including 19% VAT., plus shipping (Standard)

Choose tax zone / country of delivery

Available (Shipping time: 1 - 4 workdays)

LED REGW pixel chains can be used in many ways. For example, as ambient lighting, patio lighting or build a matrix with our brackets.

You can digitally control each individual LED through the installed SM16704 chip. The output data is processed by the SM16704 chip cut off and the remaining data then forwarded to the next on-chip (if installed). This makes it possible to connect several hundred LEDs in series (please note the possibilities of your control unit here).

The drive can e.g. about the available programs Glediator, Jinx! or MADRIX in conjunction with our  Advatek PixLite Controllern.

You also have the option to control the LEDs via our standalone controllers or you program a microcontroller (arduino, Teensy).

Each LED fits into a 12mm diameter drill hole.


  •   Werbedisplays
  •   Weihnachtsbeleuchtung
  •   AmbiLight
  •   Gartenbeleuchtung
Current voltage:
WEEE-Reg.-Nr. :
Protection class:
Energy efficiency class:
Shipping weight:
0,30 Kg
3,50 m
Technical specifications
chipsatz: SM16704 chip (for full 24-bit color)
voltage: 5V current, 60mA maximum per pixel (full white LED)
Working temperature:  -15 bis + 60 °C
protection class (LEDs): IP68
lifetime: > 50000h
beam angle: > 90°
diameter: 12mm
length of each LED: about 22mm
LED distance: about 75mm (cable length)
LED distance: about 3,5 Meter
included in delivery: 50 LEDs installed in a chain
user manual
