Description

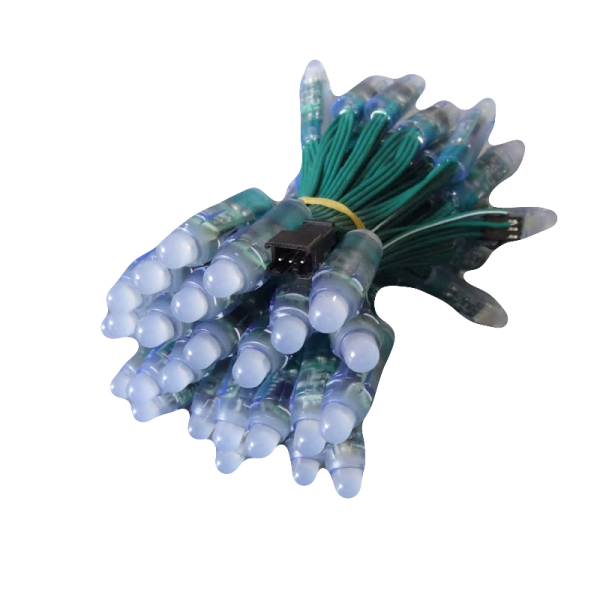

LED pixel chains can be used in many ways. For example, as ambient lighting, patio lighting or build a matrix with our brackets.
You can digitally control each individual LED through the installed WS2811 chip. The output data is processed by the WS2811 chip cut off and the remaining data then forwarded to the next on-chip (if installed). This makes it possible to connect several hundred LEDs in series (please note the possibilities of your control unit here).
The drive can e.g. about the available programs Glediator, Jinx! or MADRIX in conjunction with our Advatek PixLite Controllern.
You also have the option to control the LEDs via our standalone controllers or you program a microcontroller (arduino, Teensy).
Each LED fits into a 12mm diameter drill hole.
Application area:
-
Advertising displays
-
Control of Christmas lights
-
AmbiLight
Technical data
| Item information |
Value |
| Operating Voltage: |
5 Volt DC |
| Controller IC: |
WS2811 |
| Pixel Diameter: |
12 mm |
| WEEE-Reg.-Nr.: |
DE 32487762 |
| Ingress Protection: |
IP68 |
| Cable color: |
green |
| Shipping weight: |
0,30 kg
|
| Content: |
3,50 m
|
Product safety information
Manufacturer information:
PIXLtec GmbH
Maybachstraße 8
Baden-Württemberg
76227 Karlsruhe
Deutschland
info@pixltec.de
Technical specifications
| chipsatz: |
WS2811 chip (for full 24-bit color) |
| voltage: |
5V current, 60mA (3x 20mA) maximum per pixel (full white LED) |
| Working temperature: |
-15 bis + 60 °C |
| protection class (LEDs): |
IP68 |
| lifetime: |
> 50000h |
| beam angle: |
> 90° |
| diameter: |
12mm |
| length of each LED: |
about 38mm |
| LED distance: |
about 75mm (cable length) |
| LED distance: |
about 3,5 Meter |
| Cable color: |
green |
| included in delivery: |
50 LEDs installed in a chain |
