WS2811 RGB Full Color 12mm Pixels digital adressierbare LED (5Volt) Side view

WS2811 RGB Full Color 12mm Pixels digital adressierbare LED (5Volt) Frontal

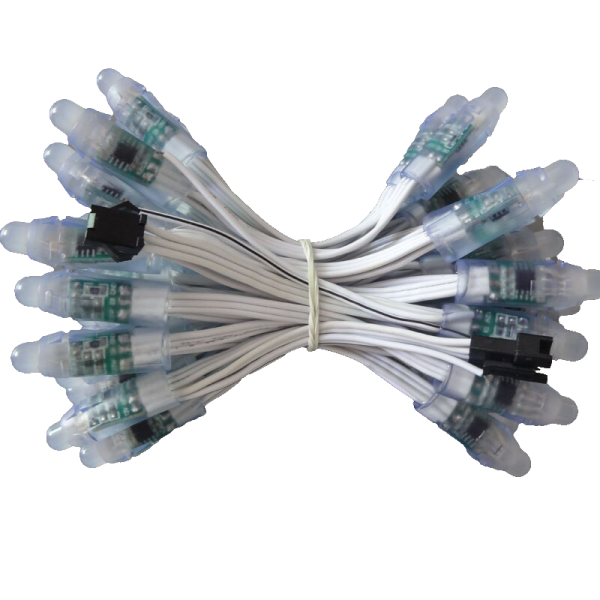

WS2811 RGB LED 12mm pixel string (5V) white wire

SKU: PLK-1017-01

Category: 5 Volt

GTIN: 4260587331430
HAN: PLK-1017-01

Our WS2811 LED pixel chains consist of 50 RGB LEDs connected to a chain.

Item currently out of stock

Choose tax zone / country of delivery

This article is located in the inlet

Notify me when this item is available

This article is located in the inlet

LED pixel chains can be used in many ways. For example, as ambient lighting, patio lighting or build a matrix with our brackets.

You can digitally control each individual LED through the installed WS2811 chip. The output data is processed by the WS2811 chip cut off and the remaining data then forwarded to the next on-chip (if installed). This makes it possible to connect several hundred LEDs in series (please note the possibilities of your control unit here).

The drive can e.g. about the available programs Glediator, Jinx! or MADRIX in conjunction with our Advatek PixLite Controllern.

You also have the option to control the LEDs via our standalone controllers or you program a microcontroller (arduino, Teensy).

Each LED fits into a 12mm diameter drill hole.

Application area:

Advertising displays
Control of Christmas lights
AmbiLight

Item information	Value
Current voltage:	5 Volt
Chipset:	WS2811
Diameter:	12 mm
WEEE-Reg.-Nr.:	DE 32487762
Cable color:	white
Protection class:	IP68
Energy efficiency class:	A bis A++
Shipping weight:	0,30 kg
Content:	3,50 m

chipsatz:	WS2811 chip (for full 24-bit color)
voltage:	5V current, 60mA (3x 20mA) maximum per pixel (full white LED)
Working temperature:	-15 bis + 60 °C
protection class (LEDs):	IP68
lifetime:	> 50000h
beam angle:	> 90°
diameter:	12mm
length of each LED:	about 38mm
LED distance:	about 75mm (cable length)
LED distance:	about 3,5 Meter
Cable color:	white
included in delivery:	50 LEDs installed in a chain
