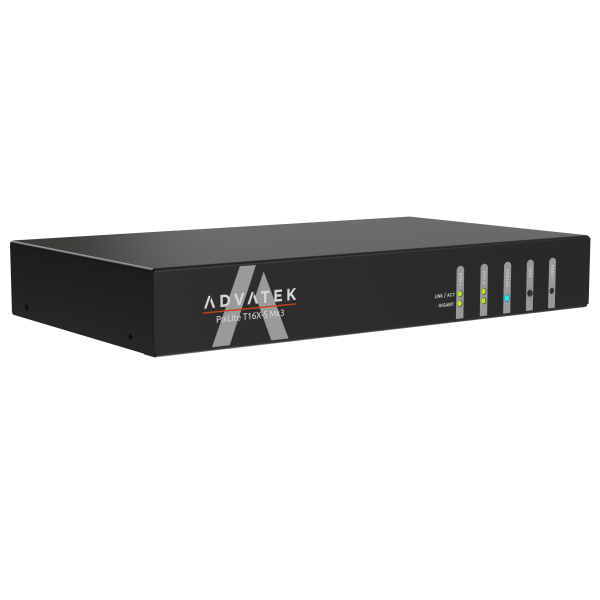

Advatek PixLite® T16X-S Mk3 – Long Range Pixel Controller
The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller based on Advatek’s 3rd generation Mk3 processor. It delivers up to 96 universes of data across 16 RJ45 outputs over distances up to 300 m, making it ideal for professional installations with widely spaced LEDs.
Key Features
- Dual Gigabit Ethernet (2 × 10/100/1000 Mbps) with built-in hardware firewall
- On-board microSD slot for standalone SHOWTime™ recording and playback
- 16 SPI outputs via RJ45 (compatible with PixLite R1F-S & R2F-S receivers)
- RS485 auxiliary port for DMX512 in/out and trigger functionality
- Power input: 100–240 VAC, 1 A fuse
- Operating temperature: −10 °C to +60 °C
Technical Specifications
Technical specifications of PixLite T16X-S Mk3
Parameter |
Value |
Dimensions (W×H×D) |
282 × 42 × 169 mm |
Weight |
1.32 kg |
Enclosure Material |
Aluminum |
Mounting Options |
Panel, Wall, or 19″ Rack |
