Technical data
Product safety information
Manufacturer information:
inoage GmbH
Wiener Straße 56
Sachsen
01219 Dresden
Deutschland
info@inoage.com
https://www.inoage.de

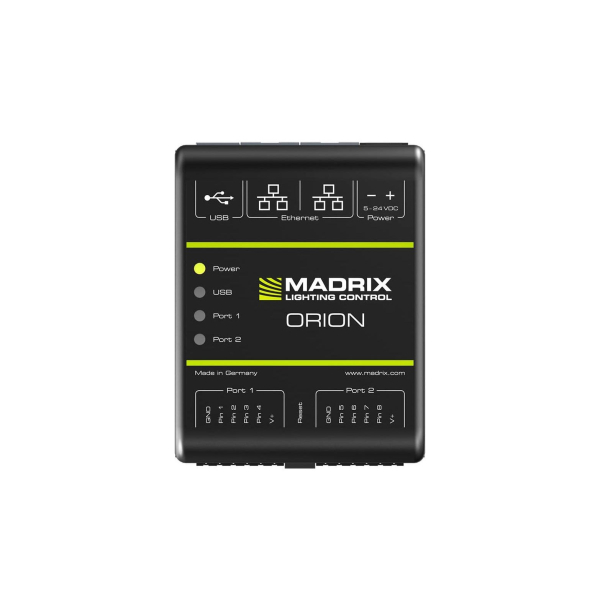

Technical specifications
| Power supply: |
DC 5 V - 24 V, A) via 2-pin screw terminal (12 A max.), B) via 5 V USB, C) via Port 1 or 2 sourced from LEDs; 6 A max. load per port when supplying through to LEDs |
| Power consumption: |
lower 1.5 W during normal operation (300 mA max.) |
| Data output: |
8x 512 channels SPI TTL (Maximum output per port: 680 RGB LEDs / 512 RGBW LEDs / 2048 1-channel LEDs) |
| Ports: |
2x ports (via 2x 4-pin screw terminals) |
| Ethernet: |
2x RJ45, Auto MDI-X, 10/100 MBit/s (compatible with 1 GBit/s) |
| USB: |
USB 2.0, type B port |
| Case: |
Non-conductive, IP20, UL94 V-0 flammability rating, designed for 35 mm DIN rails or wall mounting |
| Dimensions: |
92 mm x 70 mm x 45 mm (length x width x height) |
| Temperature range: |
- 10 °C to 70 °C (Operating) | - 20 °C to 85 °C (Storage) |
| Relative humidity: |
5 % to 80 %, non-condensing (Operating / Storage) |
| Delivery included: |
1 Controller |
supported Pixel
Currently the following pixels are supported:
APA101 / APA102 / APA104 / APA106 / GW6201 / GW6205 / LPD1882S / LPD6803 / LPD8806 / MBI6120 / P9883 / SJ1221 / SK6812 / SK6822 / SM16703 / SM16716 / TLS3001 / TLS3008 / TM1804 / TM1809 / TM1812 / TM1814 / TM1829 / UCS1903 / UCS512B3, UCS8904, UCS9812S, WS2801 / WS2803 / WS2811 / WS2811S / WS2812 / WS2812B / WS2813 / WS2815 / WS2818 / WS2822S / WS2822S Addressing (As of July 2018)
