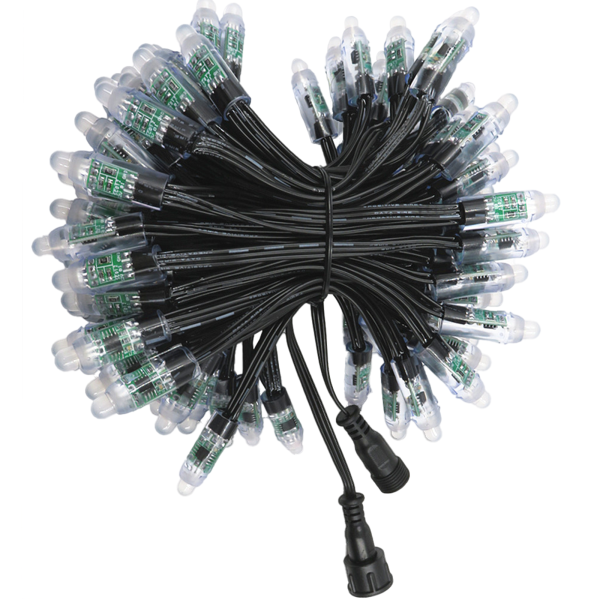

WS2811 RGB Pixel String (12V) – 12 mm · IP68 - 100 Pixels - xConnect® - Black

SKU: 10130

GTIN: 4260587332628

WS2811 RGB Pixel String with 12 mm bullet pixels for professional 12 V installations.

Protocol:WS2811 (single-wire NZR, up to 800 kHz)
Supply:12 V DC (for standard 12 V pixel setups)
Pixels:12 mm bullet, 10 cm pitch (4")
Protection:IP68 (potted pixels)
Wiring:18 AWG / 0.75 mm²

100 px xConnect® black cable 3-year warranty

Details and scope of the warranty: Warranty Conditions.

Item currently out of stock

Choose tax zone / country of delivery

This article is located in the inlet

Notify me when this item is available

This article is located in the inlet

WS2811 RGB Pixel String (12 V DC) – 12 mm Bullet, 10 cm Pitch, IP68

Addressable RGB pixel string using WS2811 (single-wire NZR) for 12 V installations. For stable, repeatable results, proper power distribution, sensible injection points, and a continuous GND reference between controller, PSU and string are key.

WS2811 – protocol & technical basics

WS2811 is a widely used standard for digitally addressable RGB pixels. Data is transmitted as single-wire NZR (typically up to 800 kHz). Each pixel consumes its portion of data (typically 24 bit) and forwards the remaining stream to the next pixel in the daisy-chain.

Core specifications

IC / protocol: WS2811, single-wire NZR, up to 800 kHz
Supply: 12 V DC
Pixel: 12 mm bullet, RGB, individually addressable
Pitch: 10 cm (4") standard
Protection: IP68 (potted pixels)
Wiring: 18 AWG / 0.75 mm²
Mechanical: fits 12 mm mounting holes (typical pixel mounts/plates)

Variants – how to choose

Pixel count: 50 or 100
Connector: JST-SM or xConnect® (match your system/extension wiring)
Cable colour: black or blue/white/red (per variant)
Custom lengths: project-based / on request

Note: IP68 applies to the potted pixels. For a fully outdoor-ready system, the connector/sealing and mechanical strain relief also matter.

Electrical planning (current, voltage drop, injection)

Planning current: up to approx. 60 mA per pixel at 100% white (RGB full)
Example load: 50 px ≈ 3.0 A · 100 px ≈ 6.0 A
PSU headroom: typically +20–30%
Voltage drop: depends on cable length, gauge, topology and allowed ΔV
Power injection: define injection points from measurement/ΔV targets (not “by feel”)

Rule of thumb: ΔV = I · R (consider both outgoing and return conductors). Practical approach: measure voltage under load at the start and end of each power segment and derive injection points from that.

WS2811 data signal & system integration

Signal: single-wire NZR; daisy-chain (pixel consumes data and forwards the rest)
GND reference: common ground between controller, injection and string is mandatory
Controller → first pixel: keep as short as possible; for long runs, buffering/signal conditioning is common
Direction: observe DIN/DO (marking/arrow) or the string will not respond
Topology: structure larger builds into power segments; route data according to controller design

Outdoor & connectors

The pixels are IP68 (potted). For long-term outdoor installations, the connector system and mechanical build quality are also important. xConnect® is typically designed for robust outdoor plug connections. JST-SM is widely used, but outdoors it usually requires additional sealing (e.g. heat shrink/gel/enclosure) and proper strain relief depending on the installation.

Warranty according to Warranty Conditions.

FAQ

How long is a string with 10 cm pitch?

With a 10 cm (4") pitch, the length is primarily determined by pixel count: 50 pixels ≈ 5 m, 100 pixels ≈ 10 m – plus lead wires (depending on variant).

When do I need power injection?

When voltage at the end of a power segment drops too far under load (visible: dimming/unstable colours) or measurements confirm it. Key factors are pixel count, brightness, cable lengths, gauge and topology. Recommendation: measure under load and derive injection points from data.

Which connector should I choose – JST-SM or xConnect®?

Choose the connector that matches your controller/extension system. For plug-and-play outdoor connections, xConnect® is typically the more robust option. JST usually needs additional sealing and strain relief for outdoor use.

What should I check first if I see flicker?

1) common ground (GND) between controller/injection/string, 2) signal direction (DIN/DO), 3) voltage under load at the first and last pixel, 4) controller-to-first-pixel lead length (too long) / signal conditioning.

Item information	Value
Controller IC:	WS2811
Pixel Diameter:	12 mm
WEEE-Reg.-Nr.:	DE 32487762
Cable color:	black
Voltage management:	resistor
Pixel spacing:	4 inch (≈ 10 cm)
Color depth:	24-bit (≈16M colors)
Cuttable:	Yes, after each pixel
Operating Voltage:	12 Volt DC
Ambient Operating Temperature::	-15 to + 60°C
Connector System:	xConnect®
Power (string):	~72 W (100 px)
Design current (string):	approx. 6.0 A (100 px @ full white)
Length (string):	approx. 10 m
Ingress Protection:	IP68
Wire gauge:	18 AWG – 0,75 mm²
Shipping weight:	0,80 kg
Content:	100,00 Pixel
