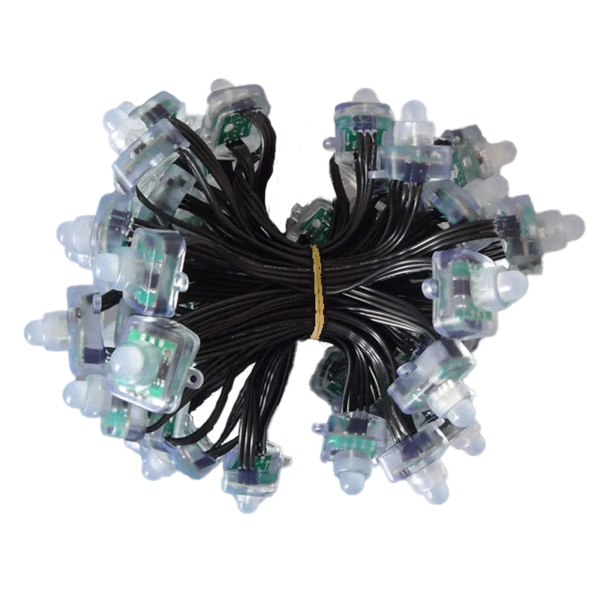

WS2811 RGB Pixel String Square (12V) – 12 mm · IP68

SKU 10239

WS2811 RGB Square Pixel String with 12 mm square / lay-flat pixels for 12 V installations (addressable, 24-bit color). Ideal for flush mounting on flat panels/props and matrix builds.

  • Protocol:WS2811 (single-wire NZR, up to 800 kHz)
  • Supply:12 V DC
  • Planning:Power injection depends on load, cable length and topology
  • Pixels:12 mm square / lay-flat, 10 cm pitch (4")
  • Protection:IP68 (potted pixels)
  • Wiring:18 AWG / 0.75 mm²
  • Options:Pixel count, connector type and cable color via selection

3-year warranty

Details and scope of the warranty: Warranty conditions.

11,99 €
incl. 19% VAT, plus shipping costs

Business customer? Net prices & quotes in your B2B account →

  • Available immediately
Pixel Count
Connection type
Cable color
string
or pay directly
  • Available immediately
  • Ships from Germany

Description

WS2811 RGB Square Pixel String (12 V DC) – 12 mm lay-flat, 10 cm pitch, IP68

Addressable RGB pixel string with WS2811 data signal (single-wire NZR) for 12 V installations. The square / lay-flat housing is designed for flush mounting on flat materials (e.g. coro/panels, signs, matrix builds): defined orientation, cleaner front appearance and less “twist” in the substrate. For repeatable results, proper power distribution, sensible injection points and a consistent GND reference between controller, PSU and string are essential.

WS2811 – protocol & technical background

WS2811 is a widely used standard for digitally addressable RGB pixels. Data is transmitted as single-wire NZR (typically up to 800 kHz). Each pixel consumes its data (usually 24 bit) and forwards the remaining stream to the next pixel in the chain.

Key specifications

  • IC / protocol: WS2811, single-wire NZR, up to 800 kHz
  • Supply: 12 V DC
  • Pixels: 12 mm square / lay-flat, RGB, individually addressable
  • Pitch: 10 cm (4") standard
  • Protection: IP68 (potted pixels)
  • Wiring: 18 AWG / 0.75 mm²
  • Mechanics: fits 12 mm mounting holes (panel/coro mounts, pixel panels)
Square / lay-flat: optimized for visible front mounting on flat materials (props, signs, matrix panels) – flush seating and defined orientation reduce visual “noise” in tight rows and matrices.

Options – how to select

  • Pixel count: 50 or 100
  • Connector: JST-SM or xConnect® (match your system/extensions)
  • Cable color: black or blue/white/red (per option)
  • Special lengths: project-based / on request
Note: IP68 applies to the potted pixels. For a truly weatherproof system, connector sealing and mechanical strain relief also matter.

Electrical planning (current, voltage drop, injection)

  • Planning current: up to approx. 60 mA per pixel at full white (RGB 100%)
  • Example load: 50 px ≈ 3.0 A · 100 px ≈ 6.0 A
  • PSU headroom: typically +20–30%
  • Voltage drop: depends on cable length, gauge, topology and acceptable drop
  • Power injection: define points based on measurements/drop, not guesswork
Rule of thumb: ΔU = I · R (consider both forward and return path). In practice: measure voltage under load at the start and end of a segment and derive injection points from that.

WS2811 data signal & integration

  • Signal: single-wire NZR; daisy-chain (pixel consumes data and forwards)
  • GND reference: common ground between controller/injection/string is mandatory
  • Controller → first pixel: keep as short as possible; on longer runs buffering/conditioning is common
  • Direction: follow DIN/DO marking/arrow
  • Topology: segment larger setups for power; route data according to controller capabilities

Outdoor & connector systems

Pixels are IP68 (potted). For permanent outdoor installs, the connector system and mechanics also matter. xConnect® is typically designed for robust outdoor connections. JST-SM is common, but outdoors it usually needs additional sealing (e.g. heat-shrink/gel/housing) and strain relief depending on the build.

Warranty according to the warranty conditions.

FAQ

How long is a string with 10 cm pitch?
Roughly: 50 pixels ≈ 5 m, 100 pixels ≈ 10 m (plus lead wires – depending on option).
When do I need power injection?
When voltage drop becomes visible under load (brightness/color shift) or measurements at the end of a segment drop too far. Define injection points by measuring under load.
Why square / lay-flat instead of bullet?
Square / lay-flat pixels are optimized for flat-panel mounting (coro/panels, signs, matrix panels): flush seating, defined orientation and typically a cleaner front appearance in rows/matrices.
Which connector should I choose – JST-SM or xConnect®?
Choose based on your controller/extension system. For robust outdoor connections, xConnect® is typically the better choice. Outdoors, JST-SM usually requires extra sealing and strain relief.
What should I check first if there is flicker?
1) common ground (GND) between controller/injection/string, 2) data direction (DIN/DO), 3) voltage under load at the start (and end if needed), 4) long data leads/EMI – add buffer/conditioning if required.

Technical data

Item information Value
Controller IC: WS2811
Pixel Diameter: 12 mm
WEEE-Reg.-Nr.: DE 32487762
Cable color: black
Voltage management: resistor
Pixel spacing: 4 inch (≈ 10 cm)
Color depth: 24-bit (≈16M colors)
Cuttable: Yes, after each pixel
Power (string): ~ 36 W (50 px)
Design current (string): approx. 3.0 A (50 px @ full white)
Length (string): approx. 5 m
Operating Voltage: 12 Volt DC
Ambient operating temperature: -15 to + 60°C
Connector System: xConnect®
Ingress Protection: IP68
Wire gauge: 18 AWG – 0,75 mm²
Shipping weight: 0,01 kg
